Basics about HEPA
About HEPA Filters: -
- HEPA stands for High Efficiency Particulate Air, is a mechanical air filter.
- It filters out smaller particles like dust & dirt particles of size 0.3-micron dia.
- It works by forcing air through a fine mesh that traps harmful particles such as pollen, pet dander, dust mites, and tobacco smoke.
- Because of this risk of nosocomial spread of SARS CoV-2 reduces.
- Like influenza, COVID-19 is transmitted by respiratory droplets, which can linger in an enclosed space for more than 10 minutes. A patient who asks for a glass of water in a crowded hospital hallway can generate thousands of droplets per second. What happens to the person without a mask who steps into that air space?
- Modifying existing HVAC systems, which hospitals have been optimizing for decades to prevent airborne transmission of other pathogens, doesn’t make sense to Mr. McDavid. If anything, some facilities, such as the Johns Hopkins Hospital, in Baltimore, are adding more of what works, such as HEPA filters and negative-pressure rooms to create more space to isolate COVID-19 patients.
- According to NIOSH, HEPA traps 99.97% dust particle 0.3-micron dia
- Simplest filter is the sieve.
- To catch smaller particles dust & dirt very fine filter or several filters on top one another is required.
- Vacuum cleaner clogged contaminants very quickly but it required more power and energy so it is costlier.
- Filter works like sieve to stop large particles like dirt, dust, hair.

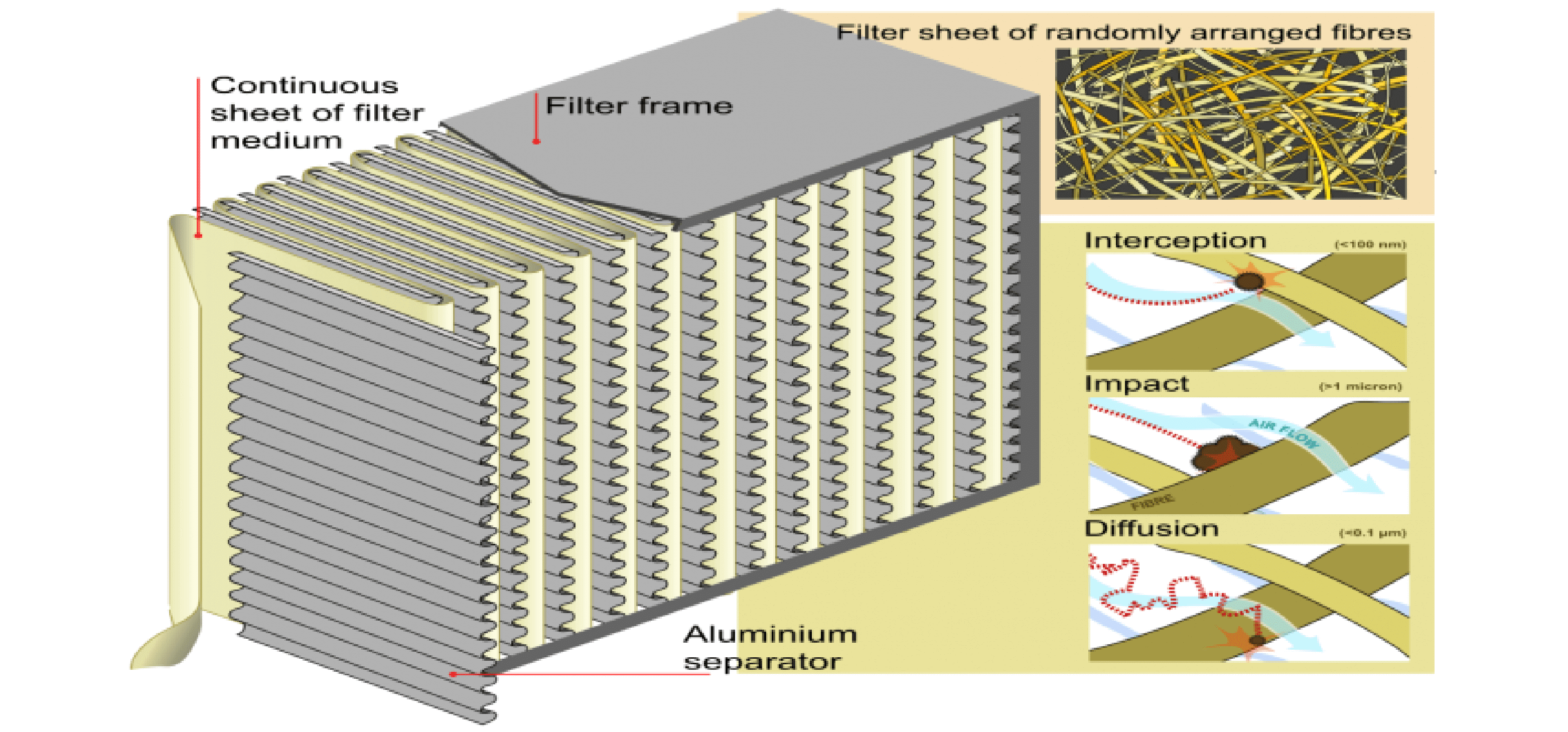

- There is concertina inside the filter which is the folded paper designed to trap small particles. Paper is the mat of very dense glass fiber.

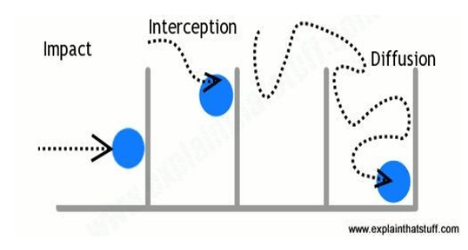

- Also it uses 3 different ways to filter out dust particles. At high speed air particles trapped as they snatch directly into the fibres, other clogged on fibre. Air at lower speed contains dust particles which wander anywhere and may stick to the fibre. This motion is called as Brownian motion.
- These 3 mechanism allow HEPA to catch smaller & larger particle size than certain target size.
HEPA filter trapped particle smaller than 0.3 micron also but 0.3 micron size is least well filtered particles.
EPAfine and ULPAfine filters are also critical in the prevention of the spread of airborne bacterial and viral organisms. Used in surgical operating rooms, and other critical medical air filtration applications
HEPA and ULPA filters are there to provide the highest
quality of air cleanliness, helping safeguard the life and health of both patients and medical staff. At Graver Technologies, we take extreme measures ensuring our customers with quality and certified products with efficiencies up ranging from 99.97% to 99.999% at .12µm.
- Surgical smoke evacuation
- Surgical respirator systems
- Negative pressure isolation rooms
- Micro derm Abrasion
- Biological safety cabinets
- Industrial vaccum cleaners
